Cube Sugar Making Line Was Sold to Peru
This customer was a owner of a Cube Sugar Plant Owner, He find our company from Alibaba, after a longtime discuss, he decide to visit our company. Our sales manager Eason pick him from Xinzheng air port and he was very happy to visit to China. In our factory our engineer show how the sugar cubes making machine works and the cube sugar it produce. Our customer shows very interest on that machine and finally make up his mind and sigh contract with us in our company. Hope Everything gose well with his business.

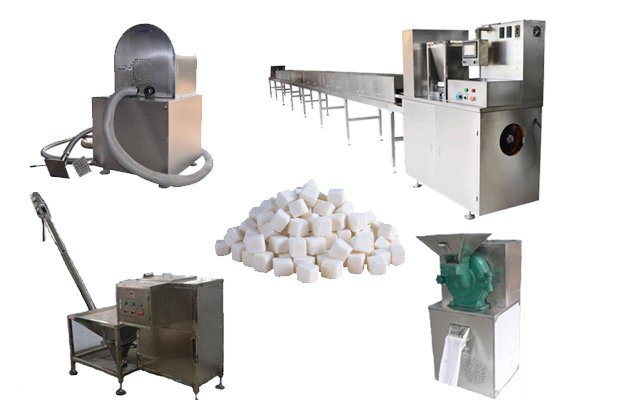

Machine Parameter:
The sugar cube machine is mainly applied in the briquetting of sugar with cube shapes, the sugar has different specifications like 16*16*13mm, 6*16*15mm, 18*18*12 and so on, besides the sugar making machine mold can be customized according to customer special requirements.
No. | Equipment Name | Detailed Specifications |
1 | Sugar Grinder Machine |
Model:LG-100 Capacity:50-100kg/h Feed size: <5mm Grinding fineness:12-150mesh Motor power:2.2kw Dimension:780*750*1500mm Weight:250kg |
2 | Mixed Spiral Feeding Machine |
Model: LG-SG Function: mixing and automatic feeding Motor power: 3.85kw Discharge port from the ground: 1700mm Dimension: 500*500*1650mm Weight: 140kg |
3 | Sugar Making Machine |
Model: LGF-60 Capacity:60-120kg/h Power:3kw,380V/50Hz Dimension:1200*600*1400mm Weight:800kg PLC control, man-machine interface. |
4 | Tablet Linkage Conveyor |
Model: LGS-2 Function: Linkage & Transmission Efficiency: 0-10m3/min Air pressure: 0.3-0.5Mpa Dimension: 1300*700*1000mm Weight: 60kg |
5 | Infrared Drying Tunnel |
Model: LGH-3 Efficiency: 0-10m3/min Power: AC380V50Hz 2KW*4 Dimension: 1900*700*1150mm Weight: 90kg*4 |
6 | Cooler Machine |
Model: LGQ-1 Function: Cooling Efficiency: 0-10m3/min Dimension: 1900*700*700mm Weight: 60kg |
7 | Semi-automatic Sugar Packing Machine |
Model: LG-250 Feature: infinite speed variation Rated voltage: 220V/380V 50-60Hz Power: 2.2kw Maximum pressure: 36(43)Kpa Maximum degree of vacuum: 26(31)KPA Table: customized Chuck handle: 2 pcs Dimension: 650*600*950mm Weight: 75kg |
